高分子電纜橋架分為槽式、托盤式和梯架式，由支架、托臂和安裝附件等組成。建筑物內橋架可以單獨架設，也可以附設在各種建（構）筑物和管廊支架上，應體現結構簡只，造型美觀、配置靈活和維修方便等特點。經濟快速的發展使得電纜橋架的使用率很高，它使得電線、電纜、光纜的設備具備了標準化、系列化、通用化水平。而電纜橋架安裝的環境各有不同，這就要求電纜橋架做到對環境的適應度要高，而高分子電纜橋架具有阻燃、防腐、絕緣好的優點能夠應對環境對電纜橋架的影響。

Polymer cable tray is divided into trough type, tray type and ladder type, which is composed of support, bracket and installation accessories. The bridge in the building can be erected separately or attached to various buildings (structures) and pipe gallery supports, which shall reflect the characteristics of simple structure, beautiful appearance, flexible configuration and convenient maintenance. With the rapid economic development, the utilization rate of cable bridge is very high, which makes the equipment of wires, cables and optical cables have the level of standardization, serialization and generalization. The installation environment of cable bridge is different, which requires the cable bridge to have a high adaptability to the environment, and the polymer cable bridge has the advantages of flame retardant, anti-corrosion and good insulation, which can deal with the impact of the environment on the cable bridge.

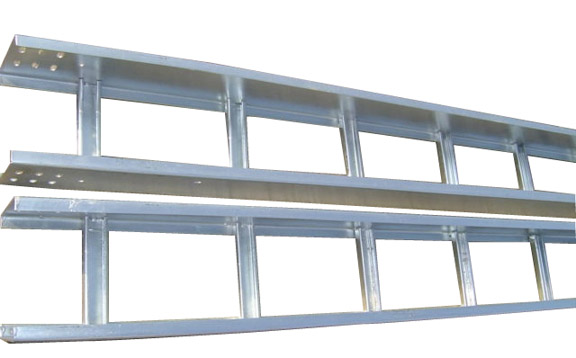

電纜橋架有著多種形式，主要是槽式、托盤式和梯架式、網格式等結構。由于輕巧化的設計，可以廣泛應用于各種建筑場所。室內的配電支架或者室外的露天建筑物。電纜橋架主要是支架，托臂和其他一系列的安裝配件。結構看起來十分簡潔，沒有過多復雜的內部結構，靈活安裝，維修方便。正是由于電纜橋架的改良設計，分量輕，承載能力大，才使得在不同的用電環境中橋架都可以快速安裝和適用于大型的配電場景，在電纜鋪設計劃中發揮了重大作用。同時另外的槽式橋架更是具有良好的屏蔽功能，正是由于它是屏蔽式的結構，可以在嚴酷的環境下都有良好的保護效果，同時具有防塵功能，更好的保護電纜和橋架。不同的橋架有著不同的優點和缺陷，我們應根據場景選擇。

Cable tray has many forms, mainly trough type, tray type, ladder type, grid format and other structures. Due to the lightweight design, it can be widely used in various construction sites. Indoor power distribution support or outdoor open-air building. Cable tray is mainly a bracket, bracket and a series of other installation accessories. The structure looks very simple, without too many complex internal structures, flexible installation and convenient maintenance. It is because of the improved design of cable tray, light weight and large bearing capacity that the cable tray can be quickly installed and suitable for large-scale power distribution scenarios in different power consumption environments, and has played an important role in the national cable laying plan. At the same time, the other trough bridge has good shielding function. Because it is a shielding structure, it can have good protection effect in harsh environment. At the same time, it has dust-proof function to better protect cables and bridges. Different bridges have different advantages and disadvantages. We should choose them according to the scene.

電纜橋架選擇要做好前期的準備工作，包括環境、型號、電力系統情況等，如下：1、了解基本的情況：（4）確定安裝方式：根據場所的設置條件確定橋架的固定方式，選擇懸吊式、直立式、側壁式或是混合式，連接件和緊固件一般是配套供應的，此外，根據橋架結構選折相應的蓋板。 （5）繪出電纜橋架平、剖面圖，局部部位還應繪出空間圖，開列材料表。 2、如與電力電纜橋架合用時，應將電力電纜和弱電電纜各直一側，中間采用隔板分隔。3、弱電電纜與其它低電壓電纜合用橋架時，應嚴格執行選擇具有外屏蔽層的弱電系統的弱電電纜，避免相互間的干擾。山東歐凱高分子材料有限公司打造綠色產品。

Preliminary preparations shall be made for the selection of cable tray, including environment, model, power system, etc., as follows: 1. Understand the basic situation: (4) determine the installation mode: determine the fixation mode of cable tray according to the setting conditions of the site, and select suspension type, vertical type, side wall type or hybrid type. Connectors and fasteners are generally supplied together. In addition, Select and fold the corresponding cover plate according to the bridge structure. (5) Plan and section drawings of cable tray shall be drawn, and space drawings shall be drawn for local parts, with material list listed. 2. If it is used with the power cable bridge, the power cable and weak current cable shall be straight on each side, and the middle shall be separated by partitions. 3. When the weak current cable and other low-voltage cables share the bridge, the weak current cable of the weak current system with external shielding layer shall be strictly selected to avoid mutual interference. Shandong Oukai polymer material Co., Ltd. creates green environmental protection products.

橋架支撐件安裝：1.橋架支撐件在室內安裝常用幾種型式，參照國標圖集86SD169《電纜橋架安裝》。2.自制支架與吊架所用扁鐵規格不應小于30mm×3mm,扁鋼規格不小于25×25×3mm,圓鋼不小于φ8。自制吊支架按設計要求進行防腐處理。3.支架與吊架安裝時應掛線或彈線找直，用水平尺找平，以保證安裝后橫平豎直。輕鋼龍骨上敷設橋架應設各自只獨卡具吊裝或支撐系統，吊桿直徑不應小于8mm,支撐應固定在主龍骨上，不允許固定在輔助龍骨上。4.鋼結構：可將支架或吊架直接焊在鋼結構上，也可用全能吊具進行安裝。

Installation of bridge supports: 1. Several types of bridge supports are commonly used for indoor installation, refer to the national standard atlas 86sd169 cable bridge installation. 2. The specification of flat iron used for self-made support and hanger shall not be less than 30mm × 3mm, flat steel specification not less than 25 × twenty-five × 3mm, round steel not less than φ 8。 The self-made lifting bracket shall be subject to anti-corrosion treatment according to the design requirements. 3. During the installation of supports and hangers, hang lines or snap lines for alignment, and level with a level ruler to ensure that they are horizontal and vertical after installation. The cable tray laid on the light steel keel shall be provided with a separate fixture hoisting or support system. The diameter of the suspender shall not be less than 8mm. The support shall be fixed on the main keel and not allowed to be fixed on the auxiliary keel. 4. Steel structure: the support or hanger can be directly welded on the steel structure, or it can be installed with all-round spreader.

電纜橋架材料如何選擇？現在電纜橋架在生活中的使用已經是很普遍的了，電纜橋架提高了電力系統的運輸，檢查修理也很方便，所以如果電纜橋架的質量好的話，使用壽命長是在好不過的了，電纜橋架的材料可以選用冷軋鋼板，冷軋鋼板就是經過冷軋生產的鋼板。冷軋是在室溫條件下將鋼板進一步軋薄為目標厚度的鋼板。和熱軋鋼板比較，冷軋鋼板厚度更加準確，而且表面光滑、漂亮，同時還具有各種優越的機械性能，特別是加工性能方面。因?yàn)槔滠堅肀容^脆硬，不太適合加工，所以通常情況下冷軋鋼板要求經過退火、酸洗及表面平整之后才交給客戶。

How to select cable tray materials? Now the use of cable bridge in life is very common. Cable bridge improves the transportation of power system and is convenient for inspection and repair. Therefore, if the quality of cable bridge is good, it is better to have a long service life. The material of cable bridge can be cold-rolled steel plate, which is the steel plate produced by cold rolling. Cold rolling is to further thin the steel plate to the target thickness at room temperature. Compared with hot-rolled steel plate, cold-rolled steel plate has more accurate thickness, smooth and beautiful surface, and also has various superior mechanical properties, especially processing properties. Because the cold-rolled original coil is brittle and hard, it is not suitable for processing, so generally, the cold-rolled steel plate is required to be delivered to the customer after annealing, pickling and surface leveling.
